Have you wondered why certain programs are located under /bin, or /sbin, or /usr/bin, or /usr/sbin?
For example, less command is located under /usr/bin directory. Why not /bin, or /sbin, or /usr/sbin? What is the different between all these directories?

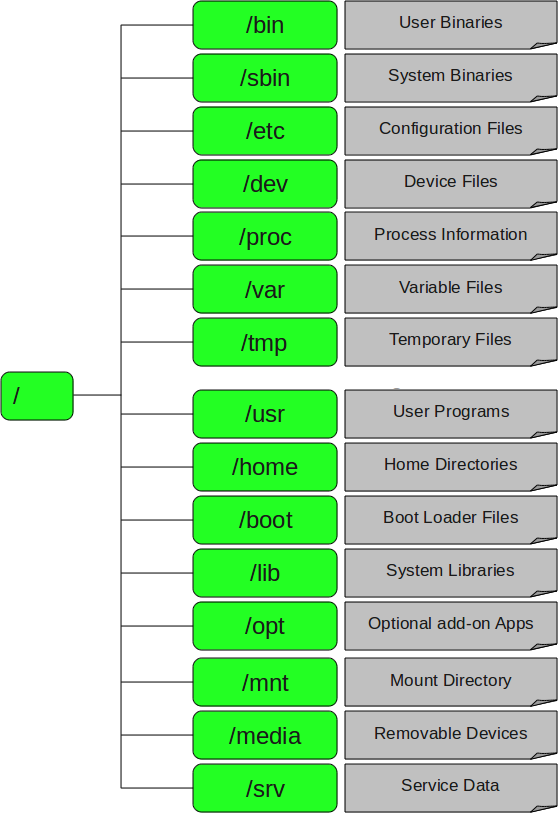

In this article, let us review the Linux filesystem structures and understand the meaning of individual high-level directories.
### 1. / – Root
* Every single file and directory starts from the root directory.
* Only root user has write privilege under this directory.
* Please note that /root is root user’s home directory, which is not same as /.
### 2. /bin – User Binaries
* Contains binary executables.
* Common linux commands you need to use in single-user modes are located under this directory.
* Commands used by all the users of the system are located here.
* For example: ps, ls, ping, grep, cp.
### 3. /sbin – System Binaries
* Just like /bin, /sbin also contains binary executables.
* But, the linux commands located under this directory are used typically by system aministrator, for system maintenance purpose.
* For example: iptables, reboot, fdisk, ifconfig, swapon
### 4. /etc – Configuration Files
* Contains configuration files required by all programs.
* This also contains startup and shutdown shell scripts used to start/stop individual programs.
* For example: /etc/resolv.conf, /etc/logrotate.conf
### 5. /dev – Device Files
* Contains device files.
* These include terminal devices, usb, or any device attached to the system.
* For example: /dev/tty1, /dev/usbmon0
### 6. /proc – Process Information
* Contains information about system process.
* This is a pseudo filesystem contains information about running process. For example: /proc/{pid} directory contains information about the process with that particular pid.
* This is a virtual filesystem with text information about system resources. For example: /proc/uptime
### 7. /var – Variable Files
* var stands for variable files.
* Content of the files that are expected to grow can be found under this directory.
* This includes — system log files (/var/log); packages and database files (/var/lib); emails (/var/mail); print queues (/var/spool); lock files (/var/lock); temp files needed across reboots (/var/tmp);
### 8. /tmp – Temporary Files
* Directory that contains temporary files created by system and users.
* Files under this directory are deleted when system is rebooted.
### 9. /usr – User Programs
* Contains binaries, libraries, documentation, and source-code for second level programs.
* /usr/bin contains binary files for user programs. If you can’t find a user binary under /bin, look under /usr/bin. For example: at, awk, cc, less, scp
* /usr/sbin contains binary files for system administrators. If you can’t find a system binary under /sbin, look under /usr/sbin. For example: atd, cron, sshd, useradd, userdel
* /usr/lib contains libraries for /usr/bin and /usr/sbin
* /usr/local contains users programs that you install from source. For example, when you install apache from source, it goes under /usr/local/apache2
### 10. /home – Home Directories
* Home directories for all users to store their personal files.
* For example: /home/john, /home/nikita
### 11. /boot – Boot Loader Files
* Contains boot loader related files.
* Kernel initrd, vmlinux, grub files are located under /boot
* For example: initrd.img-2.6.32-24-generic, vmlinuz-2.6.32-24-generic
### 12. /lib – System Libraries
* Contains library files that supports the binaries located under /bin and /sbin
* Library filenames are either ld\* or lib\*.so.*
* For example: ld-2.11.1.so, libncurses.so.5.7
### 13. /opt – Optional add-on Applications
* opt stands for optional.
* Contains add-on applications from individual vendors.
* add-on applications should be installed under either /opt/ or /opt/ sub-directory.
### 14. /mnt – Mount Directory
* Temporary mount directory where sysadmins can mount filesystems.
### 15. /media – Removable Media Devices
* Temporary mount directory for removable devices.
* For examples, /media/cdrom for CD-ROM; /media/floppy for floppy drives; /media/cdrecorder for CD writer
### 16. /srv – Service Data
* srv stands for service.
* Contains server specific services related data.
* For example, /srv/cvs contains CVS related data.
